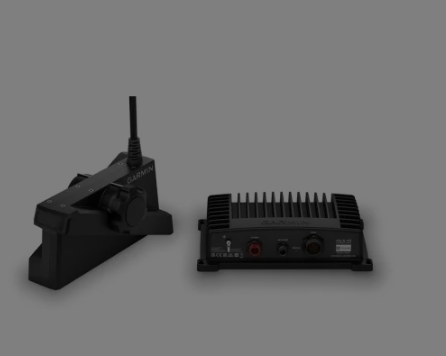

GARMIN LiveScope XR System With GLS 10™ and LVS62 Transducer

sold in last hours

Vendor: Garmin

SKU: 010-02719-00

$2,999.99

Size Guide

Delivery & Return

Ask about this product

I agree with terms and conditions

Add to wishlist

Add to Compare

Order in The Next to get it by

Real Time 14 Visitor Right Now

Spend $200 to get Free Shipping

General

Transducer beamwidth

20° x 135°

Transducer cable length

20 ft

Transducer number of pins

Dimension

GLS 10 sonar black box: 9.7” x 5.9” x 2.6” (24.5 x 14.9 x 6.5 cm);

LVS62 transducer: 8.20” x 3.98” x 2.76” (20.8 x 10.1 x 7.0 cm)

Weight

GLS 10 sonar black box: 4.3 lbs (2.0 kg)
LVS62 transducer with cable: 3.92 lbs (1.78 kg)
LVS62 transducer without cable: 2.66 lbs (1.21 kg)

Water rating

IPX7

Temperature range

GLS 10 Black Box: Operating: -15 C to 70 C

LVS62 Transducer: Operating: 0 C to 40 C

Electrical Features

Power input

10-32 V

Power usage

21 W typical, 58 W max

Fuse

7.5 A

Compass-safe distance

7" (0.18 m)

Sonar Features

Frequency

265 - 550 kHz

Transmit power

500 W

Maximum depth

Freshwater: Down and Forward: 500’ (152.0 m)
Saltwater: Down and Forward: 350’ (106.0 m)

Sonar Type

Live

Target Separation @100'

22"

Perspective Mode Mount Included

Yes

THE BEST OF THE BEST JUST HIT THE OPEN WATER

You didn’t think it could get better, but it did with the extended range of the LiveScope XR System. It’s the latest in LiveScope technology, now for coastal and open-water fishing.

Explore the deep with an extended range up to 500’ in freshwater and 350’ in saltwater.

Find fish circling your boat with clear views close around your hull.

Upgrade your current LiveScope System black box (GLS^™ 10 sonar module) with just a new transducer.

Get maximum contrast and clarity in your images with vivid color palettes.

Don’t miss a thing with supported Forward, Down and Perspective modes plus necessary mount.

THE LONG VIEW

The Reverse Range Offset feature uses more of the screen to display fish and structure up to 500’ in freshwater and 350’ in saltwater.

A CLOSE VIEW

The Compress Range feature gives you a clear view close to your boat while keeping an eye on targets farther away.

REAL-TIME IMAGES

Real-time sonar ensures that your live images are as accurate as possible.

IMAGE STABILIZATION

A built-in stabilization system keeps the sonar image on your compatible chartplotter steady, even in rough conditions.

VIVID COLOR PALETTES

Choose from seven vivid color options — including aqua, Caribbean, lava and more — to see fish and structure in maximum contrast and clarity.

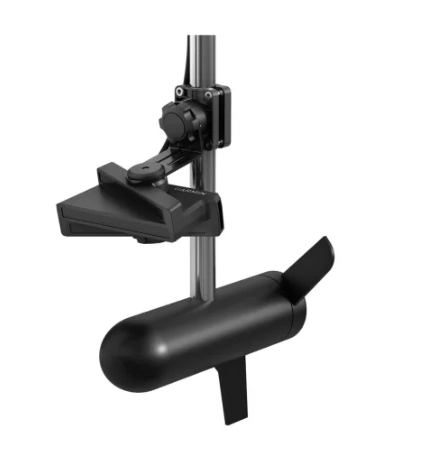

FORWARD MODE

Now scout even farther ahead of your boat to see what’s happening in real time.

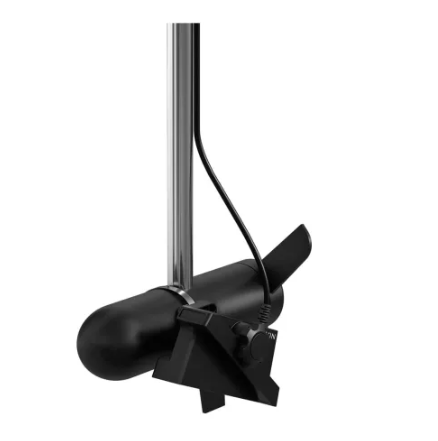

DOWN MODE

Explore live views of the activity deeper beneath your boat.

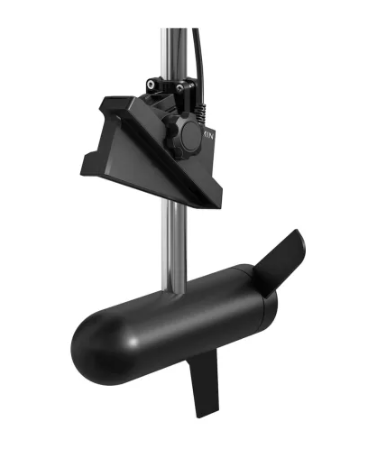

PERSPECTIVE MODE

See under the water with a view from your perspective above the water.

GARMIN LiveScope XR System With GLS 10™ and LVS62 Transducer

In the Box

LiveScope GLS 10 sonar black box
LiveScope XR LVS62 transducer
Perspective mount (LiveScope XR LVS62 transducer only)
Trolling motor barrel mount
Shaft mount
Power cable
2 meter Garmin Marine Network cable (small connector)
Network adapter cable
Documentation

General
Transducer beamwidth	20° x 135°
Transducer cable length	20 ft
Transducer number of pins	21
Dimension	GLS 10 sonar black box: 9.7” x 5.9” x 2.6” (24.5 x 14.9 x 6.5 cm); LVS62 transducer: 8.20” x 3.98” x 2.76” (20.8 x 10.1 x 7.0 cm)
Weight	GLS 10 sonar black box: 4.3 lbs (2.0 kg) LVS62 transducer with cable: 3.92 lbs (1.78 kg) LVS62 transducer without cable: 2.66 lbs (1.21 kg)
Water rating	IPX7
Temperature range	GLS 10 Black Box: Operating: -15 C to 70 C LVS62 Transducer: Operating: 0 C to 40 C

Electrical Features
Power input	10-32 V
Power usage	21 W typical, 58 W max
Fuse	7.5 A
Compass-safe distance	7" (0.18 m)

Sonar Features
Frequency	265 - 550 kHz
Transmit power	500 W
Maximum depth	Freshwater: Down and Forward: 500’ (152.0 m) Saltwater: Down and Forward: 350’ (106.0 m)
Sonar Type	Live
Target Separation @100'	22"
Perspective Mode Mount Included	Yes

THE BEST OF THE BEST JUST HIT THE OPEN WATER

You didn’t think it could get better, but it did with the extended range of the LiveScope XR System. It’s the latest in LiveScope technology, now for coastal and open-water fishing.

Explore the deep with an extended range up to 500’ in freshwater and 350’ in saltwater.

Find fish circling your boat with clear views close around your hull.

Upgrade your current LiveScope System black box (GLS^™ 10 sonar module) with just a new transducer.

Get maximum contrast and clarity in your images with vivid color palettes.

Don’t miss a thing with supported Forward, Down and Perspective modes plus necessary mount.

THE LONG VIEW

The Reverse Range Offset feature uses more of the screen to display fish and structure up to 500’ in freshwater and 350’ in saltwater.

A CLOSE VIEW

The Compress Range feature gives you a clear view close to your boat while keeping an eye on targets farther away.

REAL-TIME IMAGES

Real-time sonar ensures that your live images are as accurate as possible.

IMAGE STABILIZATION

A built-in stabilization system keeps the sonar image on your compatible chartplotter steady, even in rough conditions.

VIVID COLOR PALETTES

Choose from seven vivid color options — including aqua, Caribbean, lava and more — to see fish and structure in maximum contrast and clarity.

FORWARD MODE

Now scout even farther ahead of your boat to see what’s happening in real time.

DOWN MODE

Explore live views of the activity deeper beneath your boat.

PERSPECTIVE MODE

See under the water with a view from your perspective above the water.
